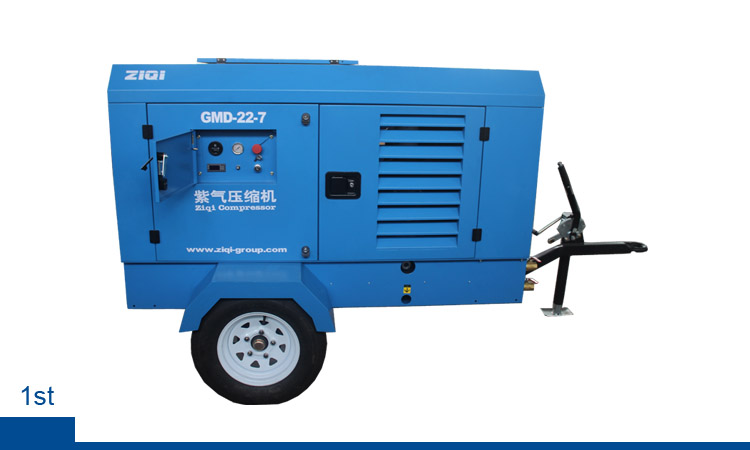

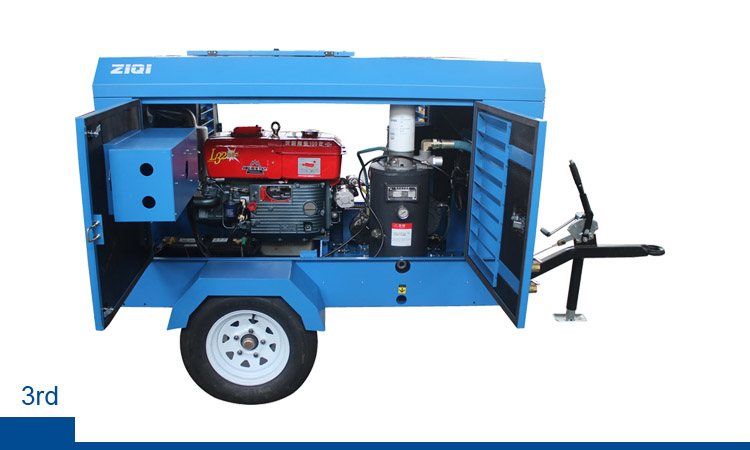

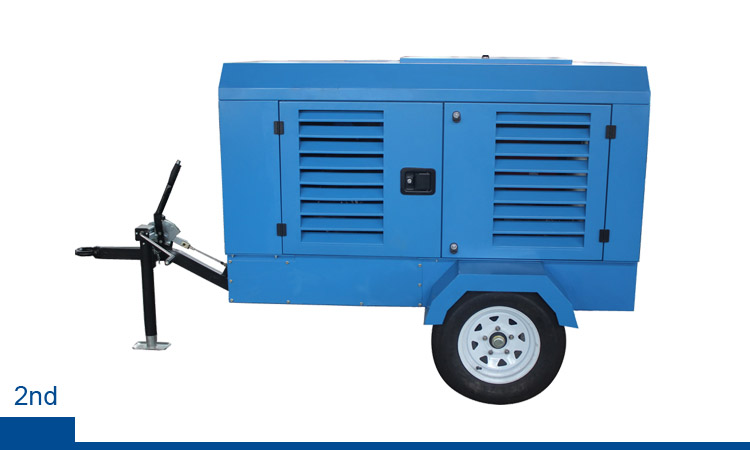

GMD-22-7~110-14.5 GM diesel driven screw air compressor group
power:22-110 Kw
Production:3-12 m3/min
Exhaust:0.7-1.45MPa
Drive mode:弹性直联
Cooling method:风冷

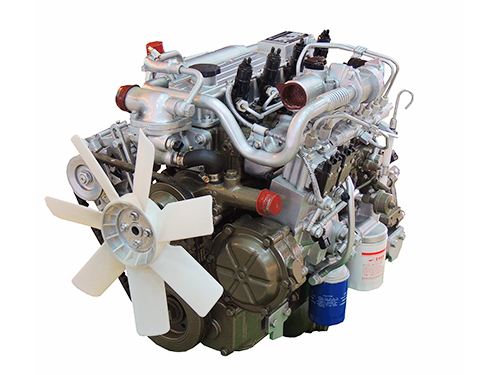

diesel engine:

· Strengthen the design to ensure the reliability: the body, crankshaft, connecting rod and other important parts of the three-dimensional finite element analysis, the temperature distribution is more reasonable, high strength, high rigidity

· Supercharger with vent valve structure: automatically adjust the intake air and intake pressure, to maintain a stable intake air charge coefficient, to maintain a good combustion, an increase of diesel engine speed range, improve low-speed and high-speed performance and emissions

· Oil pump front: to ensure oil pressure, lubrication more excellent, more reliable operation Piston forced cooling: to improve the piston heat load, reduce the deformation, cooling system is more perfect, more reliable operation.

· Fuel pump forced lubrication: full lubrication, improve lubrication, reduce the fuel pump wear, extend life, work more stable and reliable.

· Steering pump gear drive: stable operation, high transmission efficiency, better safety, higher reliability

· Air pump gear drive: stable operation, high transmission efficiency, better security, higher reliability

· Vibration optimization design: the belt with a shock absorber structure, vibration, low noise


Drive system:

· The motor and the host are equipped with an integrated gear drive system.

· Carefully selected high speed gears are mounted on the shaft of the motor and the main unit.

· Flexible coupling direct drive, the motor, the host into one, transmission efficiency, reliable operation.


Tubing:

· Selection of Italy Manuli high-pressure tubing, 5 times longer than ordinary tubing life, the use of Purple unique anti-lock technology,


cooling system:

· Large area of high quality oil cooler and rear cooler.

· Extend the service life of lubricants, filters and seals.

· The use of a unique low temperature difference design, with high temperature and high humidity environment for the design premise, suitable for any regional environment.

型号
Model
排气压力
(Mpa)
排气量
(M3/Min)
功率
(KW)
含油量
PPM
备注
Note
GMD-140-80.817140≤6四轮
GMD-140-131.315140≤6四轮
GMD-180-80.820180≤6四轮
GMD-180-8.60.8622180≤6四轮
GMD-180-14.51.4517180≤6四轮
GMD-194-14.51.4522194≤6四轮
GMD-194-171.718194≤6四轮
GMD-265-202.036265≤6四轮
GMD-336-252.530336≤6四轮
