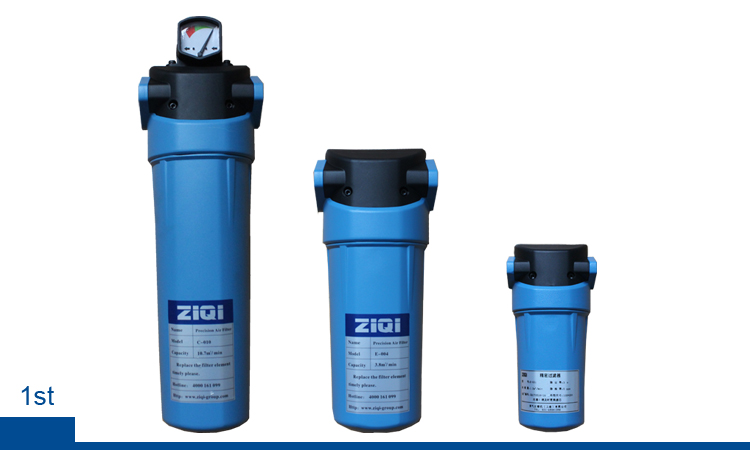

Precision filter

power: Kw

Production: m3/min

Exhaust:MPa

Drive mode:

Cooling method:

air filter

Compressed air is an important energy source in modern industry because of its flexibility and reliability, however, these advantages can only be fully realized if the compressed air is clean. It is well-known that particles are always present in the atmosphere and that these particles, after being drawn in by the compressor, are concentrated eight times. In addition, depending on the type of compressor, more or less oil enters the compressed air in the form of a micro-mist The network, along with the unfavorable factors of rusting in humid air systems, will create considerable industrial challenges, such as outages, the emergence of scrap and high maintenance costs. To solve these long-standing problems that plague industrial enterprises, it is our pursuit to process as large a flow as possible with the smallest possible filtration volume. The combination of multi-layers of filtration materials is folded to form the world's most advanced filtration technology for China's compressed air Purification field.

Separation of filters(Grade E)

·Suitable for filtering a large number of liquid and 3micron size condensate, 5ppm maximum residual oil content.

Main pipeline filter(Grade D)

·Discard the old ceramic filter, replaced by multi-layer glass fiber material;
·Main line filter: generally reciprocating air compressor front filter;
·Compressed air will be a large amount of oil, water filtration to less than 1ppm, impurity particles filtered to 1micron.

High efficient oil removal filter(Grade C)

·Multi-layered glass fiber material;
·Air line filter: The level for the general pipeline and the general spiral air compressor, is a pre-installed device；
·The compressed air oil, water vapor, liquid filtration to less than 0.01ppm, impurity particles filtered to 0.01micron.

Super high efficient oil removal filter(Grade B)

·For the glass fiber media, including the membrane covered by the film and multi-tube matrix matrix mixed fiber media；
·Ultra-precision degreasing filter: The level of air compression and post-filter device；
·For compressed air filter a very small amount of oil, water vapor, precision removed to within 0.001micron, to achieve high standards of oil-free compressed air.

Ultra-precision activated carbon filter(Grade A)

·A very fine activated carbon powder and multilayer fiber material；
·The role of this high-precision filter dedicated；
·Filter out residual oil mist in the compressed air to less than 0.003ppm, and the smell of carbon ammonia compounds and filter out ultrafine particulate matter within 0.01micron, to oil-free, odorless the best result.

Model					Capacity(Nm³/min)	Element quantity	Dimension(mm)		Air Connection(mm)	Weight(kg)
E-	D-	C-	B-	A-	Capacity(Nm³/min)	Element quantity	A(W)	B(H)	Air Connection(mm)	Weight(kg)
001	001	001	001	001	1.2	1	95	220	20	0.76
002	002	002	002	002	2.4	1	95	280	20	0.68
004	004	004	004	004	3.8	1	125	320	40	2.08
007	007	007	007	007	6.8	1	125	400	40	2.3
010	010	010	010	010	10.7	1	125	400	40	2.3
014	014	014	014	014	14	1	170	520	50	5.68
018	018	018	018	018	18	1	170	700	50	7.3
025	025	025	025	025	25	1	200	955	65	14.52
035	035	035	035	035	35	1	200	955	80	14.1
046	046	046	046	046	46	1	200	955	80	14.1
060	060	060	060	060	60	3	525	1003	125	102
068	068	068	068	068	68	3	525	1003	125	110
088	088	088	088	088	88	5	577	1064	150	147
110	110	110	110	110	110	5	651	1123	150	161
180	180	180	180	180	180	9	784	1262	200	280
230	230	230	230	230	230	11	834	1483	200	280
