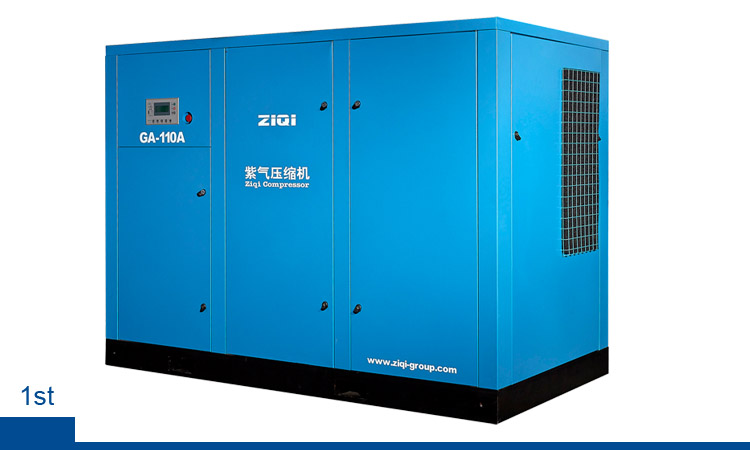

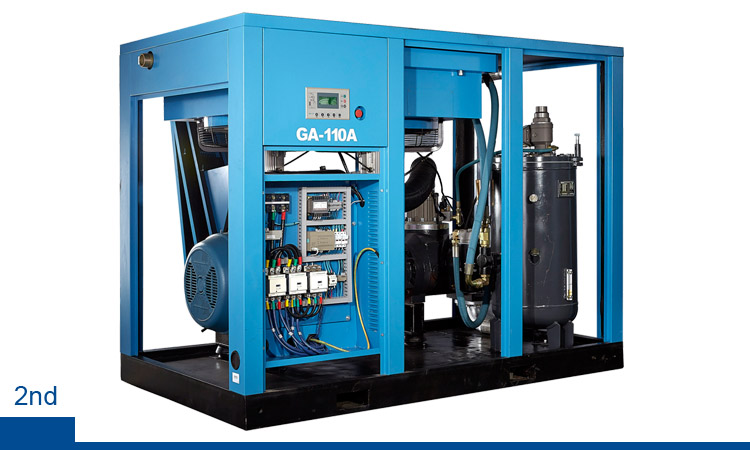

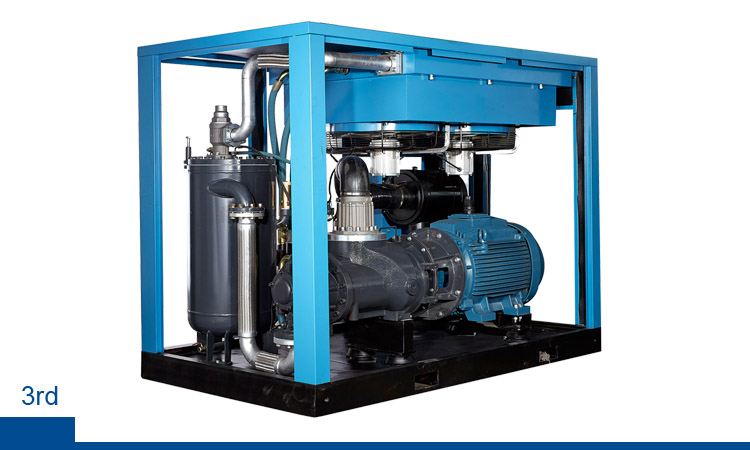

GA-55A~160A ZIQI GA series compressor
power:55-160 Kw
Production:8.6-29.5 m3/min
Exhaust:0.7-1.3MPa
Drive mode:Flexibility Driven
Cooling method:air cooling
GA-55A ~ GA-160A screw compressors are designed, tested and tested according to stringent standards. Using the German GHH host, the rationality of the aspect ratio, low noise rotor, excellent than the power and energy saving.
| Host： ·Host using the German GHH host, well-designed unique; ·Host yin and yang rotor with the most advanced international contemporary tooth profile, the largest area utilization factor, the smallest leak area, the highest efficiency; ·According to DIN standard design and manufacture of high-precision growth gear, carrying capacity, long life, low noise; |  |
| Motor： ·The frame and the end cap of the motor are made of cast iron material so that the gap between the rotor and the spindle is uniform; ·Design speed, torque and operating parameters to meet the compressor load requirements; ·Designed with SKF heavy-duty bearings, greatly increasing the stability and life of the motor; ·High-efficiency motor with F-class insulation, B-class temperature rise, longer life, more able to adapt to harsh environments; |  |
| Electrical control system： ·The main control components imported brand-name products, optimize the integration in one, high reliability, trouble-free running a long time; ·The use of integrated intelligent, intelligent higher programmable PLC, the most cost-effective way to control the operation of the entire unit; |  |
| Transmission： ·Imported high-strength narrow V-belt drive; ·Belt work when the transmission is smooth, can buffer, vibration absorption; ·If the belt is overloaded during belt work, the belt will slip on the pulley to prevent damage to the main unit and the motor; ·No lubrication, easy installation, easy maintenance, long use period; |  |
| Tubing: ·Selection of Italy Manuli high-pressure tubing, 5 times longer than ordinary tubing life, the use of Purple unique anti-lock technology, |  |
| Cooling System： ·Use well-known brand cooling fan, maintenance-free motor; ·Cooler cooling area increased by 30% compared to European models; |  |
| Airway system: ·Intake filter with imported filter, dust removal effect of 99.9%, to ensure that the compressor host effective dust; ·Intake valve assembly specially designed servo cylinder, with check function, no need to install oil check valve and oil valve; ·Unique external air pre-filter, to keep the machine clean, extend the maintenance cycle, can easily disassemble and clean up; |  |
| Mode | Air Pressure（Mpa） | Air Displacement（m³/min） | Power（kW） | Noise（dB(A)） | Dimension（mm） | Weight（kg） | Exit Diameter（mm） | Cooling water inlet pipe diameter（luch/mm） | ||
| L | M | H | ||||||||
| GA-55A | 0.7 | 10.9 | 55 | 69±2 | 2150 | 1326 | 1766 | 1550 | 50 | - |
| 0.8 | 10.4 | |||||||||
| 1.0 | 9.4 | |||||||||
| 1.3 | 8.6 | |||||||||
| GA-75A | 0.7 | 14.5 | 75 | 70±2 | 2150 | 1326 | 1766 | 1600 | 50 | - |
| 0.8 | 13.8 | |||||||||
| 1.0 | 12.6 | |||||||||
| 1.3 | 11.2 | |||||||||
| GA-90A | 0.7 | 17.0 | 90 | 75±2 | 2545 | 1450 | 1900 | 2500 | 65 | - |
| 0.8 | 16.5 | |||||||||
| 1.0 | 15.2 | |||||||||
| 1.3 | 14.0 | |||||||||
| GA-110A | 0.7 | 22.0 | 110 | 76±2 | 2545 | 1450 | 1900 | 2600 | 65 | - |
| 0.8 | 20.8 | |||||||||
| 1.0 | 18.2 | |||||||||
| 1.3 | 16.0 | |||||||||
| GA-132A | 0.7 | 25.8 | 132 | 77±2 | 2545 | 1450 | 1900 | 2760 | 65 | - |
| 0.8 | 24.2 | |||||||||
| 1.0 | 21.2 | |||||||||
| 1.3 | 18.5 | |||||||||
| GA-160A | 0.7 | 29.5 | 160 | 77±2 | 3100 | 1800 | 2065 | 3200 | 65 | - |
| 0.8 | 28.9 | |||||||||
| 1.0 | 26.8 | |||||||||
| 1.3 | 22.8 | |||||||||
